Fiber Optic Breakout Cable
Article Number: VB01-0502
With the breakout cable it is possible to connect your distribution technology in protected indoor or outdoor areas. ... more...
100% Quality Control
incl.Product Profile
Noshipping costs

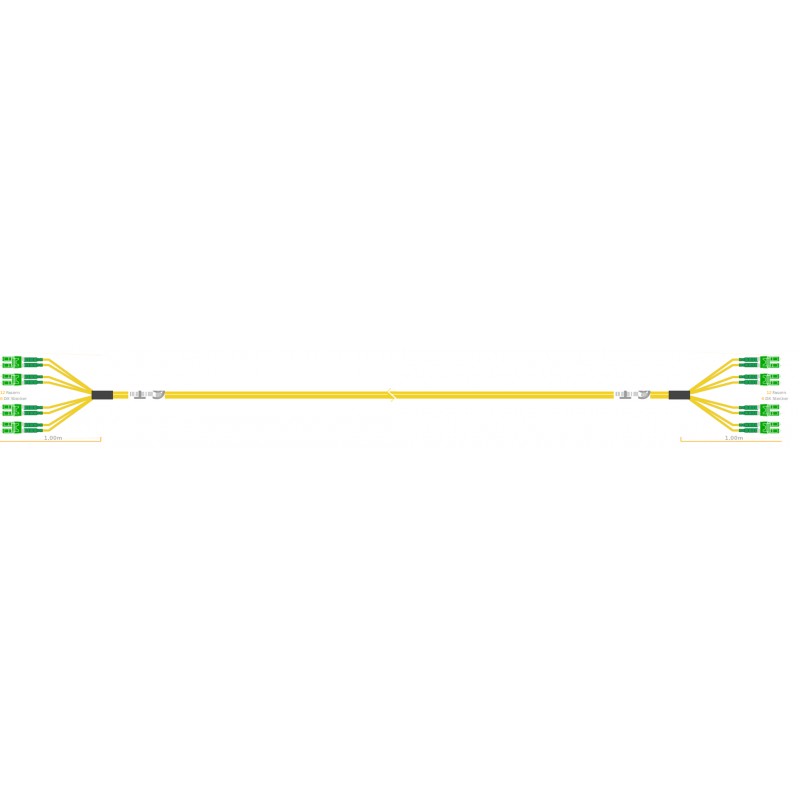

Fiber Optic Breakout Cable
With the breakout cable it is possible to connect your distribution technology in protected indoor or outdoor areas. Depending on the application, there is a suitable jacket for your robust multi-fiber cable.
I-V(ZN)HH 12E9/125µm (OS2 Corning Ultra) WEINERT, yellow (VA) Seite A: 6x LC /APC 8° dx Seikoh Giken green, Clip: Duplex Clip Bend Protection: green, Whip: 1,00m Seite B: 6x LC /APC 8° dx Seikoh Giken green, Clip: Duplex Clip Bend Protection: green, Whip: 1,00m
Cable
| I-V(ZN)HH |
| 12 |
| 12,3mm |
| FRNC |
| 150Kg/km |
| empty-parameter-value |
| Hersteller | WEINERT |
| Fiber Class | OS2 Corning Ultra |
| Kabelfarbe | yellow |
| Zugkraft | 1000N |
| Betriebstemperatur | -25°C bis +70°C |
Connectors
| Side A | Side B | |
|---|---|---|
| LC/APC 8° Singlemode DX | Steckerbezeichnung | LC/APC 8° Singlemode DX |
| IEC 61754-20, JIS C 5964-20 | Bauartspezifikation | IEC 61754-20, JIS C 5964-20 |
| Seikoh Giken | Hersteller | Seikoh Giken |
| Ø1,25mm, Keramik, axial gefedert | Ferrule | Ø1,25mm, Keramik, axial gefedert |
| -40°C bis +75°C | Betriebstemperatur | -40°C bis +75°C |
| Kunststoff / grün | Material | Kunststoff / grün |
| 500 | Steckzyklen | 500 |
| ≤ 0,12 dB (Klasse B) | Typ. Einfügedämpfung (IL) | ≤ 0,12 dB (Klasse B) |
| ≥ 70 dB | Typ. Rückflussdämpfung (RL) | ≥ 70 dB |
| grün | Bend Protection | grün |
| 1,00m | Single Elements | 1,00m |
