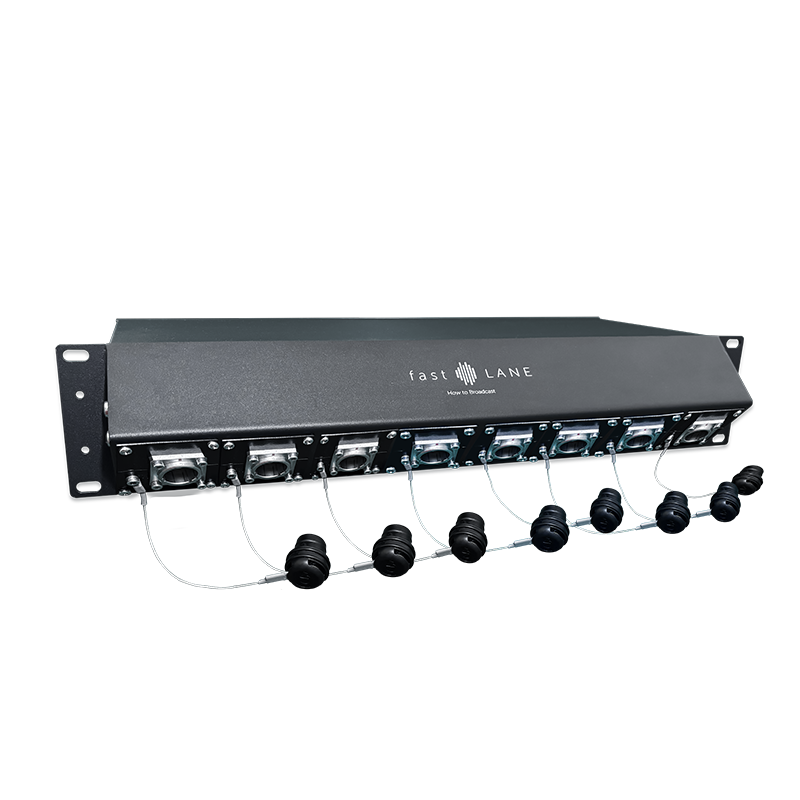

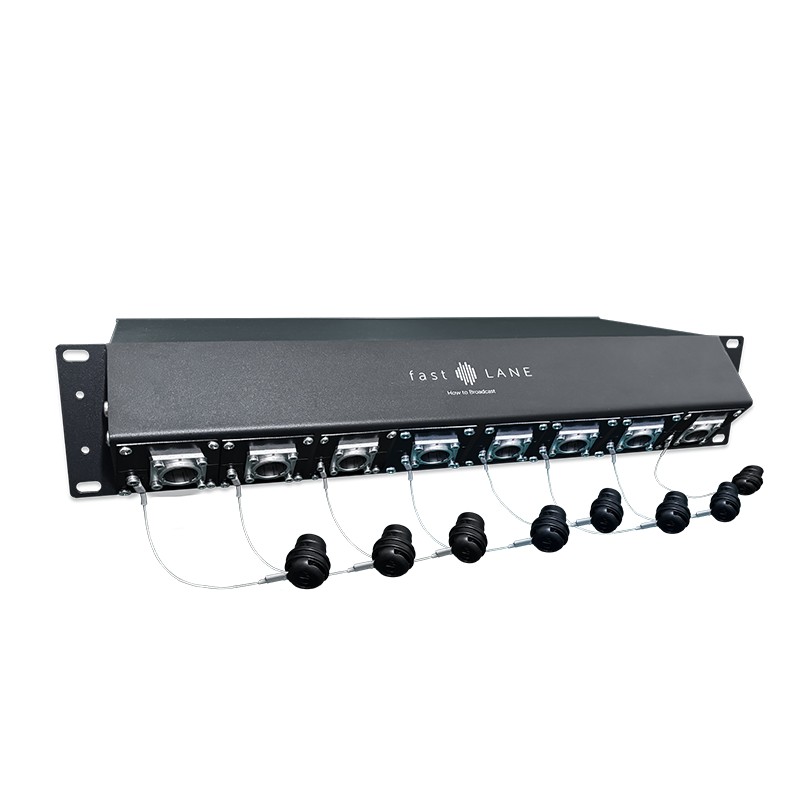

fast.LANE® easyRepair-Box
The fast.LANE transfer box completes your transmission in harsh environments. You can use your IP-protected connector, e.g. with Expanded Beam technology, over the cable route. In protected indoor areas, you can easily switch to a standard connector and connect the active technology with a simple patch cord.
for 19” fixed installation
45° angled, 2 U
Steel powder-coated, RAL 9005
incl. mounting material
suitable for:
8x 3K.93C series from LEMO
assembled with:
8x front panel divisible, for 3K.93C series EBW/EDW (LEMO)
8x rear cover for M20 cable gland
8x connection set consisting of:
singlel elements from hybrid cable SMPTE 311M
2x E9/125µm OS2; 4x AWG 20 CU stranded wire; 2x AWG 24 CU stranded wire; 1x AWG 16 CU stranded wire
black, Draka
side A: fixed socket EDW 3K.93C, LEMO
side B: LC/UPC dx sm, Seikoh Giken, duplex clip, blue
bend protection: red/black
length: 0.50m
CU single elements connected to Wago terminals
LC connector connected to adapter
8x core pigtail set 2x V-E9/125µm OS2 SMF28U
with LC/UPC sx sm
bend protection: red/black
colored according to DIN color code
length: 2.00m
2x splice cassette with cover
